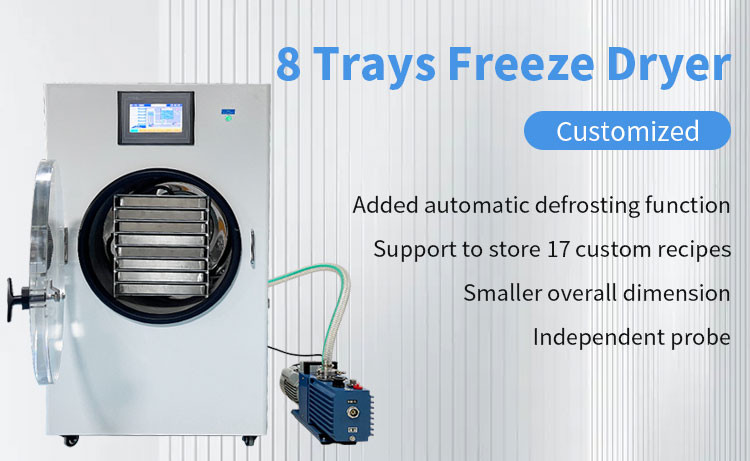

8 Tray Vacuum Freeze Dryer Vacuum Food Dryer Home 220 Volt

Freeze Dryer Large freezing area Stainless Steel lyophilizer with Vacuum Pump for sale

Main features

• The machine adopts Danfoss compressor, rapid cooling
• LCD screen control, easy to operation, and powerful function
• The door of the drying chamber is made of colorless and transparent organic glass, allowing the entire freeze-drying process to be observed.
• The vacuum pump adopts international standard KF quick connector connection.
• Stable performance, easy operation and low noise.

Product application

Product parameter

Attentions

1. Must use a grounded power outlet.
2. Working environment temperature≤32℃, the humidity≤80%.
3. After drying finished, open the vent valve to inflate air at first, then close the vacuum pump to prevent sample contaminated by the pump oil. If a sudden power outage, open the vent valve immediately, and take out the samples as soon as possible, properly stored.
4. Keep the seal ring clean, and cannot Scrub with organic solvents.
5. Replace the vacuum pump’s oil after working 100 hours, check and maintenance the pump regularly.
6. Do not frequently switch power supply and refrigerator, If the refrigerator is shut down caused by operation, at least three minutes to wait, and then restart the refrigerator

Product details

Main features

• The machine adopts Danfoss compressor, rapid cooling
• LCD screen control, easy to operation, and powerful function
• The door of the drying chamber is made of colorless and transparent organic glass, allowing the entire freeze-drying process to be observed.
• The vacuum pump adopts international standard KF quick connector connection.
• Stable performance, easy operation and low noise.

Installation step
(1)Open the package, check the components according to the packing list;
(2)Fill the pump’s oil into pump to the middle of the level guide.
Remark: Please using required oil type;
(3)Connect the pipe between pump and dryer by connectors. One side is fixed on pump’s air inlet, the other side is fixed on dryer’s vacuum outlet;
(4)Connect the pump’s power plug into dryer’s vacuum pump power outlet;
(5)Connect the power wire to dryer’s main power outlet, other side connect to power supply(with ground wire );
(6)Turn on the switch, test step by step according to the instructions. When all the technical data are satisfy (including vacuum <15Pa, condenser chamber’s temperature <-35℃), the dryer could be put into usage.
