Short Path Distillation Equipment 20L High Borosilicate Glass Corrosion Resistance

Short Path Distillation Equipment 20L High Borosilicate Glass Corrosion Resistance

Short Path Distillation Parameter

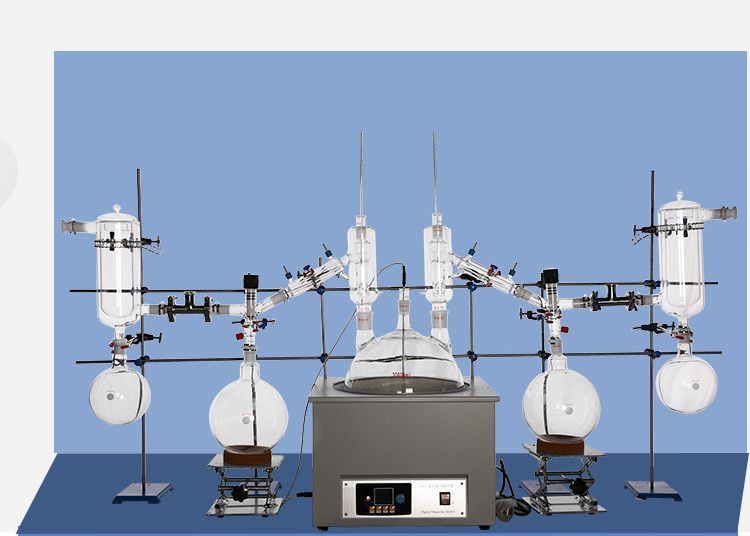

Short Path Distillation Equipment Description

The short-path distillation is primarily made of high borosilicate glass, having the advantages of excellent corrosion resistance, meticulous workmanship, high evaporation efficiency and high recovery rate. In a complete short-path distillation kit, the column cylinder is equipped with an external heating mantle, a rotor and an internal condenser. The fixing frame of rotor is precisely equipped with the scratch film and anti-splash device. The internal condenser is placed in the center of the evaporator, and the rotor is between the column cylinder and the condenser.The working process of the short path distillation can be descriped as follows. The material should be added from the top of the evaporator and continuously spread to the heating surface through the material covered on the rotor. Then, the scratch film is capable of scratching the material into a thin and flowing liquid film.

During this process, the light molecular exceeded the heating surface form the condense liquid on inside condenser without any collision. Then, the molecular flows along the condenser tube, and discharges through the discharge tube on the bottom of the evaporator. The residue liquid (heavy molecule) is collected on the circular channel under the heating zone, and flows through the discharge tube on one side.

Short Path Distillation Equipment principle

As a type of thermodynamic separation technology, the equipment can evaporate components with low boiling points by utilizing that the boiling point of each component in the mixed liquid or liquid-solid mixture is different, and then condense the material to separate the whole components. It is the combination of evaporation and condensation unit operations as well as a kind of liquid-liquid separation technology.

Short Path Distillation Equipment Advantages

1. High yield;
2. High temperature resistance;
3. Excellent sealing performance;
4. High transparency;
5. Durable material;
6. Good corrosion resistance;
7. Intelligent temperature control, and magnetic stirring.

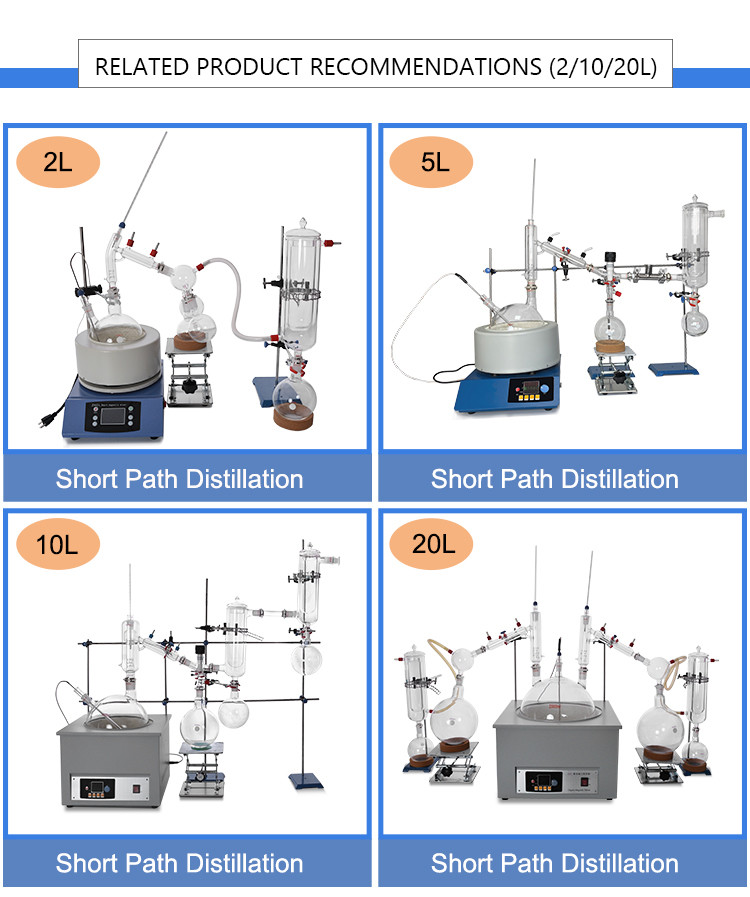

110V Short Path Distillation Apparatus

H535mm Short Path Distillation Apparatus

Short Path Distillation Equipment 20L High Borosilicate Glass Corrosion Resistance Images
